Accessories

---

DLS-0320SC

 Waterproof: IP69

 View Angle : 150 °

 Resolution: 600TV line

 Image Sensor: 1/3" CMOS

 Item Name: Side Camera System

 Min. Lumination: 0.1 Lux (6 led light)

 Lens: 2.1 mm

 S/N: >48dB

 System: PAL /NTSC

 Suitable: Side/Roof Camera

 Image: Mirror /Normal

 LUX: 0.1(6 Led)

Video Output:  1.0vp-p,75Ohm

Voltage: DC 12v(24V optional)

Consumption: 120mA

Certification : CE, E9

Warranty: 1 Year

Pixel (PAL): 720 x 572

Pixel (NTSC): 720 x 492

Operating Temp.: -30℃+70℃

White Balance: Auto

Night Vision: Support

Guideline: On/Off

Shockproof: 4G

Frequency: 50Hz/60Hz

Grama: 0.45

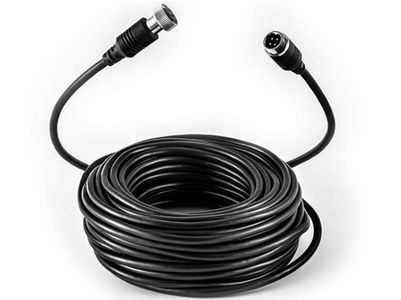

DLS-0320VC

Shielding: Foil and Braid

Contact Res.:  0.01 OHM Max

Shielding: Foil and Braid

Conductor: Pure Copper

Over Mold: PVC 80Pa ,UL94V-0 Black

Insertion Force: 35N Max Jacket Color: Black/White

Insertion Resistance:10M OHM /300V Min

Length:20m
